5.10. MIXER

THE MIXER PANEL

The mixer group has 16 'strips', one for each 'track' as in the image below. Each track represents one of the 16 midi channels of the multitimbral midi synthesizer.

Each track can be one of the following:

• An arranger track
• A midifile track
• A left hand track
• A right hand track

MIDI channel numbering can be confusing. MIDI Channels are named 1 to 16, but they are represented by physical numbers that are one less than that, i.e., 0 to 15. The numbers shown below are the physical number. To get the MIDI logical channel number, Please add +1 to all "Channel MIDI" in left column

Generally you can check this by looking at the number for the drums channel, which by convention is normally MIDI logical channel 10.

As and example: RIGHT1 below is MIDI Channel 13

Please not also that the mixer strips in arranger mode are ordered as in the centre column below.

For MIDI and Karaoke files, the channels to which the sounds are sent, and that the strips control, are in the right-most column below.

The following may be clearer if I have it correctly. All MIDI/Track numbers below are MIDI channel names 1 to 16, rather than the physical coding 0 to 15

Try a table version
Strip	Arranger		MID/KAR Play
Number	Track Name	MIDI channel	MIDI Channel
1	Drums	10	Track 1
2	Percussion	9	Track 2
3	Bass	5	Track 3
4	Accomp 1	6	Track 4
5	Accomp 2	7	Track 5
6	Accomp 3	8	Track 6
7	Accomp 4	11	Track 7
8	Accomp 5	12	Track 8
9	Left 1	3	Track 9
10	Left 2	4	Drums 10
11	Left 3	1	Track 11
12	Right 1	13	Track 12
13	Right 2	14	Track 13
14	Right 3	15	Track 14
15	Right 4	16	Track 15
16	2nd Voice	2	Track 16

A mixer strip.

Item	Observations
1	TRACK 3 in PLAYER MODE or SEQUENCE MODE or BASS ARRANGER
2	Timbre name assigned to this track. A click on the track turns it red and the vertical column timbres appears to the left for a possible change of timbre. Double-click displays the SOUND EDIT window for any changes. Right-click to display a popup window.
3	Volume slider. Slide up to increase the sound level is increased, slide down to reduce it.
4	The sound level set by the volume slider.
5	The sound meter for this mixer strip
6	The SOLO button allows you to listen to this one track only. Coloured green when active.
7	The MUTE button turns off this track. Coloured orange when active.
8	The PAN indicator shows the left/right setting of the track. C for centre, 64L (left) or 63R (right) at the extremes. Adjust the Panning by moving the dark blue button left or right. A light blue line indicates the position relative to centre.
9	Shows the name of FX2. Three dashes indicates off. Click on the name to select the FX2 effect to apply to the sound.
10	A rotary control (*) for effect FX1 that controls the amount of the affect to apply to the track. The red arc indicates the level from 0 to 127(**) Black indicates that no effect is applied
11	A rotary control (*) for effect FX2 that controls the amount of the affect to apply to the track. The green arc indicates the level from 0 to 127(**) Black indicates that no effect is applied
12	Shows the Expression level (MIDI control 11) as a red line on the meter of each track. Expression acts as a volume control for the track.
*	Click on the knob and slide up or down to change the setting
**	Hover the cursor over the knob to see it's value.

SECTION SOUND EDIT

Double-click on one of the 16 tracks to open the SOUND EDIT window. Once the window is open, a single click on any other track will change the the SOUND EDIT window to that track.

The RIGHT 1, 2, 3, 4, 2nd VOICE, LEFT 1, 2, 3 tracks allows to create simple or more complex presets, and the following parameters are added:

A keyboard play area:

Key From and Key To allow you to select the range of keys(notes) for an action.

Define the Key From note by clicking on the displayed value and then play the keyboard the desired note (the number will be displayed.).

Define the Key To note by clicking on the displayed value and then play the keyboard the desired note (which may not be less than From Key).

A velocity range:

Velocity From Sets the value of the strike force from which the note will be generated. A low value corresponds to "light" the maximum is "Sforzando."

Velocity To Sets the value of the strike force from which the note will no longer generated. This value can not be less than Velocity From.

An octave change.

A transposition in semitones.

These special lanes and 2nd RIGHT and LEFT VOICE allow for example to produce a different tone and a different velocity according to the octave played

Once these parameters are set, you can save the preset using SAVE SOUND.

Additional for the DRUM and PERC tracks only

Right-click on the DRUM or PERC track and select DRUM MIXER... to access the additional extra settings for the percussion tracks.

Particularity of the BASS track

You have the ability to save the MANUAL BASS SUSTAIN. To do this, select Manual Bass, double click on the bass track, and change the value of the Release Time. You can then save this setting in SAVE STARTUP CONFIG.

SAVE SOUND

SAVE RIGHT SOUND is available from the button and "SOUND ..." The following parameters are stored in SAVE RIGHT SOUND:

By combining up to 5 tracks (RIGHT 1, 2, 3, 4 and 2nd VOICE) it is easy to create new complex sounds.

CONTEXT MENU TRACK

Right click on a track displays a context menu that allows the following selections:

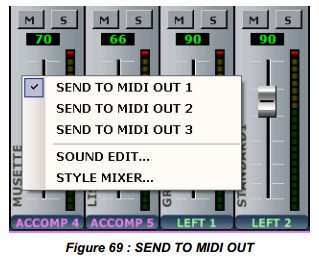

For example, right click ACCOMP4:

SEND TO MIDI

This menu allows you to route MIDI track this information to multiple MIDI outputs, these choices are not mutually exclusive.

Note : It is possible to use multiple MIDI interfaces with the same names of MIDI ports.

SOUND EDIT ...

See Section 5.10.2 SOUND EDIT

DRUM MIXER ...

See Section xxx DRUM MIXER

STYLE MIXER ...

This command displays summary screen settings current style for each track, and each variation.

GROUP MASTER/EFFECTS

This group has 4 channels and adjustment effects two groups:
The first track named SONG, we read a sequence or an audio file, or STYLE for the use of a style rule by moving the cursor vertical level of the sequence, or the audio file type (0-127)
The second channel named adjusted by means of the vertical level of the cursor LEFT section (0 to 127). This path can be selected, which causes the display option in VOICE. This feature allows you to associate a bar SOUNDS MY STYLE. A right-click displays the popup menu cf. 5.10.4.
The third path named in adjusted by means of the vertical level of the cursor RIGHT section (0 to 127). This path can be selected, which causes the column display stamps allowing choice. A right-click displays the popup menu cf. 5.10.4.
The fourth track named MAST rule acting on the vertical rule acting on the vertical slider overall output level (MASTER) from 0 to 127.
Above, another digital indicator shows white numerals on a black background, it is of polyphony, in other words, the number of notes "ON" sent to the sound module. This allows for example, whether vA2 is receiving MIDI data from the device connected to MIDI IN.
The first group of effects named FX1-REVERB can select a reverb type from eight types of which OFF (no reverb). The choice is made by clicking on the name of the REVERB in use, a drop-down list displays the different reverbs available.
By clicking on the bottom of the window vA2 It clears the combo box without applying the changes. The maximum level is adjustable reverb chosen in another drop-down list of values: 0 to 16.
The second effect group named FX2 can choose different types of CHORUS DELAY DISTO to be applied to different tracks vA2 Eight different types are available including an OFF for all three FX2 effects. By clicking on the bottom of thewindow vA2 It clears the combo box without applying the changes.
