5.10. MIXER

GROUP VOICE

This group has 16 voices, each voice can be either on a runway or arranger on a track MIDI or KAR read file.

SECTION SOUND EDIT

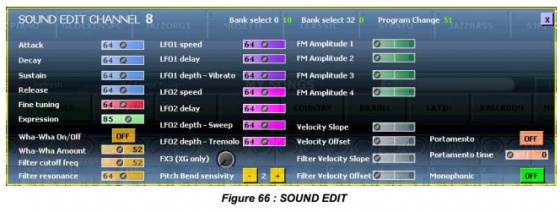

Double-click on one of 16 tracks opens the SOUND EDIT window. Once the open window, a single click on other tracks, update the SOUND EDITwindow.

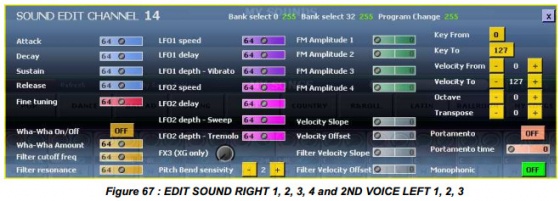

When editing tracks RIGHT 1, 2, 3, 4 and 2nd VOICE LEFT and 1, 2, 3 can be made simple or more complex presets. The above parameters is added:
A play area:
From Key and Key To allow you to select the range of action, we define KEY From notes by clicking on the displayed value and then play the keyboard the desired note (the number will be displayed.).
We define Key To note (which may not be less than From Key) by clicking on the displayed value and then play the keyboard the desired note (which may not be less than From Key).
Particular velocity:
Velocity FROM Sets the value of the strike force from which the note will be generated. A low value corresponds to "light" the maximum is "Sforzando."
Velocity To Sets the value of the strike force from which the note will no longer generated. This value can not be less than Velocity FROM.
A change octave.
A transposition in semitones.
These special lanes and 2nd RIGHT and LEFT VOICE allow for example to produce a different tone and a different velocity according to the octave played

The parameters are set you can save your work in SAVE SOUND
Distinctive Ways DRUM and PERC

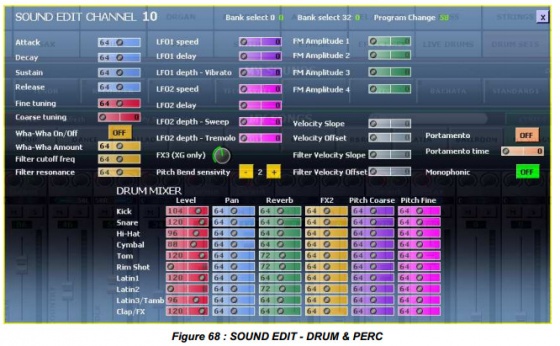

By double-clicking on the track or PERC DRUM SOUND EDIT window appears with new percussion own settings:

These two channels have a DRUM MIXER
Particulars of the Track BASS
Ability to save the MANUAL BASS SUSTAIN. To do this, select Manual Bass, double click on the bass track, and change the value of the ReleaseTime. You can then save this setting in CONFIG SAVE STARTUP

SAVE SOUND

SAVE RIGHT SOUND is available from the button and "SOUND ..." The following parameters are stored in SAVE RIGHT SOUND:

By combining up to 5 tracks (RIGHT 1, 2, 3, 4 and 2nd VOICE) it is easy to create new sounds complex.

CONTEXT MENU TRACK

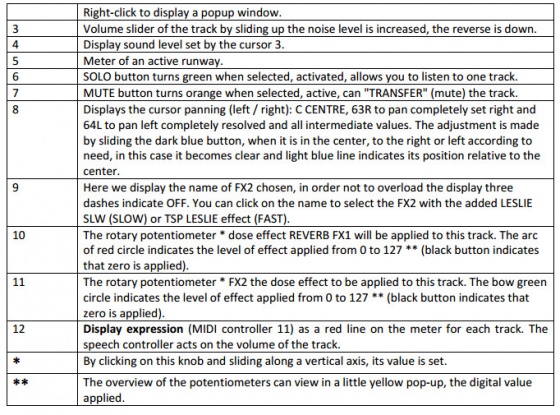

Right click on a track displays a context menu thatcallows the following selections:
Here, right click ACCOMP4:
